Lifting Devices

The crane arm attachment for forklifts provides new reaches: Massive design from section tubes, welded and screwed, length extendable in 7 steps.

• with swivel load hooks
• in two designs for different load capacities
• Secured by bolt to protect from unintended slipping

As standard in Eichinger-Orange (similar to RAL 2000).

Please consider the specifications of your vehicle when selecting an extending jib. It is strongly recommended to include your quality control department when selecting an extending jib.

Can be supplied as option:

• in RAL special colour, lacquered
• in RAL special colour, powder-coated
• zinc-dipped design
• food-compatible design

Type	Cap.	W	H
2081.1	2500	520	430
2081.2	5000	520	510

Robust section tube design for transportation of loads with crane hook on forklift. This equipment attached to a forklift can be used especially where loads cannot be under-ridden.

• telescopic crane arm with swivel load hook
• height-adjustable in 3 steps up to 45 °
• Secured by bolt to protect from unintended slipping

As standard in Eichinger-Orange (similar to RAL 2000).

Please consider the specifications of your vehicle when selecting an extending jib. It is strongly recommended to include your quality control department when selecting an extending jib.

Can be supplied as option:

• in RAL special colour, lacquered
• in RAL special colour, powder-coated
• zinc-dipped design
• food-compatible design

Type	Cap.	W	H
2082.1	2500	540	645
2082.2	5000	540	645

The forklift attachment with swivel load hook for quick, spontaneous transportation tasks with working loads.
Secured to protect from unintended slipping.

As standard in Eichinger-Orange (similar to RAL 2000)

Can be supplied as option:

• in RAL special colour, lacquered
• in RAL special colour, powder-coated
• zinc-dipped design
• food-compatible design
• design for higher loads

Type	Cap.	L	W	H
For 1 fork of a forklift
2084.1	1000	400	210	510

The forklift attachment with swivel load hook for quick, spontaneous transportation tasks with working loads.
Secured to protect from unintended slipping.

As standard in Eichinger-Orange (similar to RAL 2000)

Can be supplied as option:

• in RAL special colour, lacquered
• in RAL special colour, powder-coated
• zinc-dipped design
• food-compatible design
• design for higher loads

Type	Cap.	L	W	H

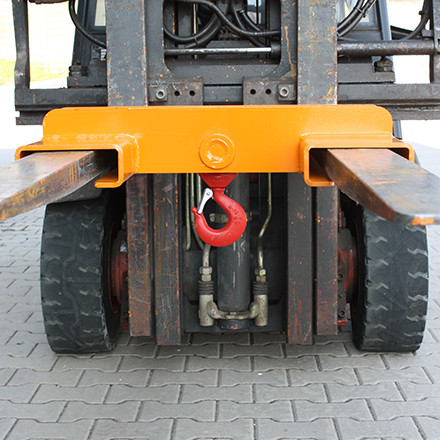

For 2 forks of a forklift
2084.2	2000	940	645	270
2084.3	3000	940	735	270
2084.4	5000	940	735	320

This is an essential aid for a multitude or tasks: The double arm forklift attachment with swivel load hook ensures centric load distribution on two forklift prongs. It is fixed to the forklift prongs with a wing screw on the side.

As standard in Eichinger-Orange (similar to RAL 2000).

Can be supplied as option:

• in RAL special colour, lacquered
• in RAL special colour, powder-coated
• zinc-dipped design
• food-compatible design
• design for higher loads

Type	Cap.	L	W
2085.1	2500	790	180
2085.2	5000	890	190

Massive carrying ram for transportation of tube, hollow bodies and carpet coils etc. Can be supplied in different lengths and weight classes, including safety chain to protect from unintended slipping.

As standard in Eichinger-Orange (similar to RAL 2000).

Can be supplied as option:

• in RAL special colour, lacquered
• in RAL special colour, powder-coated
• zinc-dipped design
• design for higher loads
• zinc-dipped design
• food-compatible design

Type	Cap.	Ø	L
2087.1	1000	85	2800
2087.2	1000	85	3800
2087.3	1500	85	2800
2087.4	1500	85	3800
2087.5	2000	110	2800
2087.6	2000	110	3800
2087.7	2500	110	2800
2087.8	2500	110	3800

The container tipper is an ideal supplement for forklifts equipped with a third control element controlling hydraulic rotating. The forklift driver can, in this way, fully or partially empty the spreading material directly from the container to the left.

• protected by chain against unintended slipping
• for all containers with docking pockets
• can be rotated in driving direction to the left up to 130°

As standard in Eichinger-Orange (similar to RAL 2000).

Can be supplied as option:

• in RAL special colour, lacquered
• in RAL special colour, powder-coated
• zinc-dipped design

Type	Load Capacity
2091	1500

Ideal for emptying and washing waste bins: Tipping equipment welded from massive steel sections with integrated forklift docking pockets in stable, twist-free base frame. Unlocking of the tipping mechanism via rope pull from driver seat. Two hooks fix the waste bin
automatically at their fixing brackets.

• protected by chain against unintended slipping
• suitable for all vehicles with fork prongs

As standard in Eichinger-Orange (similar to RAL 2000).

Can be supplied as option:

• in RAL special colour, lacquered
• in RAL special colour, powder-coated
• zinc-dipped design

Type	Load Cap.	Vol.
2093.1	600	80/120
2093.2	600	240

Under-riding, securing, lifting, transporting and emptying: Large bins can be quickly transported, emptied and cleaned inside the factory site with the massive attachment to the forklift. Two foldable arms secure the waste bin on the side by the handles. A steel rope holds the opened cover in position while the hydraulic tipping equipment tilts the container forward and backward with controllable throttle valves.

• protected against unintended slipping by chain
• suitable for all vehicles with fork prongs

As standard in zinc-dipped design.

Can be supplied as option:

• in Eichinger-Orange (similar to RAL 2000)
• in RAL special colour, powder-coated

Type	Load Capacity
2094	600

Ideal for transporting, emptying and washing of Euro grating boxes: The grating box will be under-ridden and lifted by the closed fork attachment in this case.
The tipping equipment – welded from massive steel sections – locks automatically via two tensioning hooks as soon as tipping is triggered by the forklift hydraulic system.

• protected against unintended slipping by chain
• suitable for all vehicles with fork prongs

As standard in zinc-dipped design.

Can be supplied as option:

• in Eichinger-Orange (similar to RAL 2000)
• in RAL special colour, powder-coated

Type	Load Capacity
2095	500

1096 Big Bag

Rugged, non-tearing and flexible holder made of polypropylene fibre for the transportation and storage of coarse and fine bulk material, both with and without dust content. Readily suitable for frequent reuse thanks to the seam seals and the nature of the
fabric.

1097 Spreader Beam  for Big Bag

Rugged steel construction for the low-stress transportation of Big Bags by fork truck or hoist. The large radius of the bearing pins ensure that the slings on the Big Bags have long-term protection from wear.

Optionally galvanized.

Big Bag

Type	Load Capacity
1096.1	1000
1096.2	1250
1096.3	1500

Big Bag Traverse

Type	Load Capacity
1097.1	1000
1097.2	1500
1097.3	2000
1097.4	3000

Robust welded collecting tray of galvanised sheet steel with height-adjustable corner profiles to tense Big Bags to fill wet bulk material.

The liquid can drop down into the collecting tray and can be derived through the drain closures and disposed.

It can be used for the transport with forklift or crane.

As standard in zinc-dipped design.

Type	Load Capacity	LxWxH
3039	375	1200x1200x1855
Transport dimensions
3039	375	1200x1200x700

Robust steel tube design with stability protection of gas cylinders of standard sizes to be transported.

The conical arrangement of the locking bow guarantees an optimum stability of the cylinders.

In standard version for gas bottles with Ø 250 mm.

As standard in Eichinger-Orange (similar to RAL 2000)

Can be supplied as option:

• for cylinders with Ø 220 mm
• for cylinders with Ø 300 mm
• for cylinders with Ø 320 mm
• in RAL special colour, lacquered
• in RAL special colour, powder-coated
• zinc-dipped design

Type		L	W	H
1328.1	4	900	600	2000
1328.2	6	1200	600	2000

Stable steel design, open at the bottom with fixing bracket protection for extension of fork prongs of forklifts and wheeled loaders.

Special manufacture and special dimensions are possible.

Lacquered as standard in RAL 7016 anthracite.

Can be supplied as option:

• in RAL special colour, lacquered
• in RAL special colour, powder-coated
• zinc-dipped design

Type	Load C.	max. Prong cross section
2111.1	3000	140×80
2111.2	4000	190×100

Stable, practical aid for lifting and changing of fork prongs without power requirement, working aid according to UVV (Accident prevention regulation). Available in two designs suitable for different fork prong sizes.

As standard in Eichinger-Orange, similar to RAL 2000.

Can be supplied as option:

• in RAL special colour, lacquered
• in RAL special colour, powder-coated
• zinc-dipped design

Type	Load C.	max. Prong cross section
2113.1	150	125×65
2113.2	150	150×65

A robust and stable frame from strong steel sections for storing and quick pick-up or depositing of fork prong extensions.

Always positioned orderly, effortless and without injuries: Fork prong extensions (Model 2111 and same design) can be comfortably taken off and put on.

• for 2 pairs of prongs
• maximum support width 70 cm.

As standard in Eichinger-Orange, similar to RAL 2000.

Can be supplied as option:

• in RAL special colour, lacquered
• in RAL special colour, powder-coated
• zinc-dipped design

Type	Length	Width
2114	1200	800
